Peb yog cov kws tshaj lij aluminium profile chaw tsim khoom thiab cov khoom lag luam nrog 30 xyoo ntawm lub Hoobkas extrusion, kev kho deg, thiab kev ua haujlwm CNC. Yog tias koj tab tom nrhiav rau lub sijhawm ntev sandblasted aluminium tiav profile tsum, ntseeg kuv! Koj tau pom tus khub lag luam zoo meej.
Peb muaj ntau cov khoom hauv warehouse. Thov hu rau peb ncaj qha rau cov ncauj lus kom ntxaws rau ntau extruded aluminium profiles. Dab tsi ntxiv, peb tuaj yeem paub txog kev tsim kho kev lag luam, raws li koj tus qauv tsim lossis cov qauv. Cov neeg siv khoom tshiab yuav muaj cov nqi txo nqi zoo tshaj. Xav tias dawb hu rau peb txhua lub sijhawm!
Cov ntaub ntawv khoom
|
Yam khoom: |

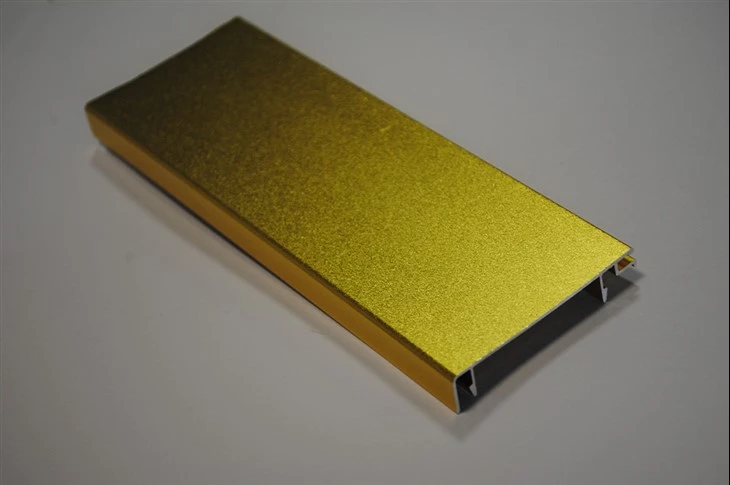

Sandblasted Aluminium Finish Profile |
|
Cov duab: |
Peb tuaj yeem Extruded raws li koj tus qauv tsim |
|
Kub: |
T3-T8 |
|
Alloy: |
Alloy |
|
Alloying Cov khoom xyaw: |
6063 |
|
Kev kho deg: |
Mill tiav, anodized, hmoov coated, electrophoresis, xuab zeb balsting thiab lwm yam. |
|
Khoom siv: |
Aluminium Alloy 6000 Series |
|
Ntev: |
1m-8m |
|
Lub sij hawm xa tuaj: |
20-25hnub |
|
Xim: |
Sliver, Dawb, Dub, Champane, Xim av |
|
Thauj Pob: |
Factory's Standard Export Packing |
|
Keeb kwm: |
Tuam Tshoj |
|
Hom: |
Qhov rai & qhov rooj Aluminium Profile, Kho kom zoo nkauj Txhuas Profile, Kub Sink Aluminium Profile, iav phab ntsa Aluminium Profile, Thawv Aluminium Profile, Rooj tog |
|
Qib: |
6000 Series |
|
Loj: |
Customized |
|
Nto: |
Customized |
|
Kev Txiav Txim Siab: |
Txais |
|
Cov cim lag luam: |
OEM |
|
Specification: |
SGS |
|
Xim avaliable: |
Nyiaj, champagne thiab lwm yam, Nyob ntawm koj qhov kev thov |
|
Packing cov ntsiab lus: |
Shrinking zaj duab xis, raws li koj qhov kev thov |
|
Cov qauv: |
10-15 hnub tom qab tau txais tus nqi pwm8. Tus me nyuam: 25 hnub tom qab tso nyiaj |
|
Muaj Peev Xwm Ntau Lawm: |
3000MT / hli |
|
MOQ: |
500 kgs |
|
Cov nqe lus them nqi: |
T/T |
|
Chaw nres nkoj: |
Foshan, Guangzhou, Shenzhen |
-
-
Khoom Description
Cov lus qhia zoo tshaj plaws rau sandblasted aluminium tiav profile suav nrog kev tu cov txhuas ua ntej, xaiv cov xuab zeb zoo.
Ntau qhov kev xaiv rau kev kho deg: Silvery dawb anodizing, electrophoretic txheej, hmoov txheej, PVDF txheej, ntoo txheej txheej. Muaj peev xwm ua tiav ntau yam lossis txawv xim raws li peb cov neeg siv khoom. Txaus siab rau cov neeg siv khoom sib txawv ntawm qhov tshwm sim.
Peb yuav muab peb cov nqi zoo tshaj plaws thiab kev pabcuam rau koj! Thov qhia rau peb paub cov specifications, kom muaj nuj nqis thiab ntim koj xav tau, peb yuav teb koj ASAP.
Nco tseg
Yog tias peb cov aluminium profiles tsis haum rau koj, koj tuaj yeem muab koj cov qauv lossis cov duab kos rau peb, peb tuaj yeem extruded raws li koj tus qauv tsim.
|
1) Tshuaj muaj pes tsawg leeg |
|
|
||||||||
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
So |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
So |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.4-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
So |
|
2) Mechanical khoom |
||||
|
Alloy |
Kub |
Lub zog tensile |
Yield zog |
Elongation |
|
6061 |
T6 |
Ntau dua lossis sib npaug li 265 Mpa |
Ntau tshaj lossis sib npaug rau 245Mpa |
Ntau dua lossis sib npaug li 8% |
|
6063 |
T5 |
Ntau tshaj lossis sib npaug rau 160Mpa |
Ntau tshaj lossis sib npaug rau 110Mpa |
Ntau dua lossis sib npaug li 8% |
|
T6 |
Ntau dua lossis sib npaug rau 205Mpa |
Ntau dua lossis sib npaug li 180Mpa |
Ntau dua lossis sib npaug li 8% |
|
|
3) hmoov txheej & ntoo-grained |
||
|
Txheej thickness |
Txheej impress rigidity |
Adhesive quab yuam ntawm txheej txheej |
|
40-120um |
Indentation hardness>80 |
0 qib |
|
4) Anodized |
|||
|
Qib |
Anodizing thickness |
Qhov scaling zoo ntawm oxide txheej |
|
|
Nruab nrab tuab |
Hauv zos thickness |
P. Cr acid-erosion hnyav dua txoj kev |
|
|
UA 10 |
Ntau tshaj los yog sib npaug rau 10um |
Ntau dua lossis sib npaug li 8um |
Tsawg dua lossis sib npaug li 30 mg / d m2 |
|
UA 15 |
Ntau dua lossis sib npaug li 15um |
Ntau tshaj los yog sib npaug rau 12um |
|
Vim li cas thiaj xaiv peb?
1. Peb muab ib qho kev daws teeb meem los ntawm extrusion, anodizing, hmoov txheej, electrophoresis, ntoo grain, nrog rau CNC machining zoo li precision txiav, drilling, xuas nrig ntaus, milling, dabtsi yog khoov thiab lwm yam. Muaj tsawg heev factories uas yuav ua tau tag nrho cov workmanships thiab tswj tag nrho cov txheej txheem ntau lawm lawv tus kheej.
2. Kev tswj xyuas nruj, ib qho los ntawm ib qho kev tshuaj xyuas los lav qhov zoo
3. Sij hawm teeb meem kev tua thiab kev daws teeb meem, yog tias muaj teeb meem ntawm cov khoom uas tshwm sim los ntawm kev tsim teeb meem, peb yuav rov tsim dua thiab them nyiaj rau lawv.
4. Ntau tshaj 20 xyoo kev paub pab neeg los muab kev daws teeb meem txog cov khoom, ntau lawm thiab xa khoom ua ntej thiab tom qab muag.
FAQ
Q1: Koj cov nqe lus kev lag luam yog dab tsi?
A: EXW, FOB thiab CIF yog OK.
Q2: Kuv yuav tsum tau muab dab tsi yog tias hais lus?
A: Qauv lossis kos duab, thiab cov ntsiab lus customized yog tias nws yog OEM & ODM xaj.
Q3: Koj tuaj yeem ua tau zoo li cas?
A: 1) Peb muaj peb tus kheej cov khoom tsim khoom Rhiav.
2) 21 cov kab ntau lawm. 800 tus neeg ua haujlwm.
3) 100% QC online thiab kuaj zaum kawg. Peb QC yuav tsis cia cov khoom tsis raug tawm ntawm peb lub hoobkas.
